| Main Technical Specifications | |
|---|---|
| MAKE | Allmand |
| MODEL | Night-Lite V-Series |
All machines are not available at all locations.

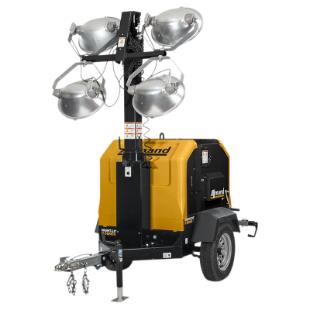

New Allmand Night-Lite V-Series Light Tower for Rental
An ROI-driven solution, the Night-Lite™ V-Series is built with the efficiency, durability and performance you demand. It will run up to 155 hours between refueling (with LED's), and has a convenient fuel fill neck for quick refueling. Plus, it offers 542,000 total lumens from the four SHO-HD light fixtures and minimize freight costs because up to twenty units fit easily on a flatbed trailer.
| Body | |
|---|---|
| Frame | Formed, welded steel frame |
| Axles | Tubular axle with elliptical leaf springs |
| Lighting | Sequenced Lighting System (SLS). System automatically turns on lights after engine start and delays engine shutdown to turn off lights first to prevent generator from shutting down while under load. |
| Trailer | Standard features: -Forklift pockets -Lift ring -Tie down slots -Removable tongue |
| Stabilizers | Three-point design - Tongue jack, two retractable side outriggers at rear of trailer |
| Light Type | Metal Halide: Number-4; Metal Halide SHO-HD fixture LED: Number-4; Two LED, 5000°K color temperature |
| Tower Features | Structure-Five section tubular steel design Actuation: -Standard-Manual winch -Optional-Electric winch -Tower rotation-Complete tower rotates 359° Guide pads-Polyethylene self lubricating |
| Towing Connection | Adjustable height combination 2 in (50.8 mm) ball coupler 3 in (76.2 mm) lunette ring for pintle hitch |
| Legacy Material Number | NLV |
| Dimensions | |
|---|---|
| Length | 110.1 in |
| Width | Transport: 53.9 in Outriggers: 104.7 in |
| Height | Mast Lowered: 107.4 in Raised: 294 in or 24’-6” |
| Weight | 1,990 lbs. |
| Gross Vehicle Wt Rating (GVWR) | 2,250 lbs. |
| Engine | |
|---|---|
| Engine Make | Mitsubishi Kubota |
| Engine Model | L3E D1005 |
| Horsepower | Mitsubishi L3E: 11.3 HP Kubota D1005: 11.7 HP |
| Fuel Tank Capacity | 45 gallons |
| Battery | Standard - 550 CCA @ 0°F Optional - 775 CCA @ 0°F only with Arctic Packages |
| Electrical System | 12 V |
| Watts | Metal Halide-1,250 LED-320 |
| Emission Standards | Tier 4 Final |
| Phase | 1-phase |
| Outlets | Standard - 20 A 120 VAC duplex GFCI outlet, plus 30 A 240 VAC 4-Wire Twist Lock (NEMA L14-30R) |
| Power Cable | Coiled cable secured at top of first, third and fifth sections to minimize possibility of tangling. |
| Operational | |
|---|---|
| Tires | ST175/80D13 load range ‘C’ |
| Frequency | 60 Hz |
| Generator | 120 / 240 VAC capacitor-regulated |
| Trailer Lights | Stop, turn, tail lights Side marker lights Illuminated license plate bracket with 4-way flat connector |
| Operating Speed | 55 mph |
| Lumens | Metal Halide: 135,500 (per lamp) 542,000 (total lumens) LED: 38,500 (per lamp) 154,000 (total lumens) |
| Operating Time | Using four 1,250 W metal halide light fixtures Mitsubishi L3E: 75.0 hours Kubota D1005: 72.6 hours Using four 320 W LED light fixtures Mitsubishi L3E: 121.6 hours Kubota D1005: 155.2 hours |
| Fixture Positioning | Fixtures can be adjusted with tower in lowered position. Light tower with fixtures can be rotated 359° at any height. |
| Shipping | 18 units on a 48’ flatbed trailer / 20 units on a 53’ flatbed trailer |
