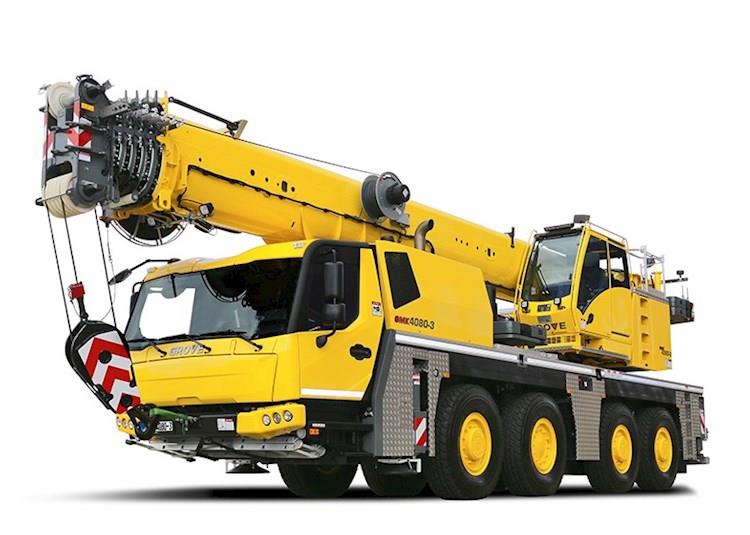

Grove GMK4080-3

New Grove GMK4080-3 All Terrain Crane for Sale

Compact and strong.

With the new GMK4080-3 you can access narrow jobsites and utilize a more compact radius to gain a better position for lift performance. Its compact size provides excellent jobsite flexibility.

The GMK4080-3 offers outstanding load charts and is outfitted with 10,2 t taxi counterweight on 12 t/axle. The remaining counterweight needed to reach full capacity fits on one standard trailer.

• The minimum width of the GMK4080-3 is 2,55 m and the overall length is 12,68 m.
• MAXbase variable outrigger positioning for increased capacities and flexibility on jobsites
• The new single engine concept on the GMK4080-3 with the latest EUROMOT 5/Tier 4 final engine reduces fuel consumption to a minimum. Using the ECO mode, the GMK4080-3 is the most fuel efficient crane in its class.
• Access narrow jobsites and utilize a more compact radius to gain a better position for lift performance. Compact size provides excellent jobsite flexibility
• Taxi counterweight offers the best load charts in its class outfitted with 10,2 t counterweight on 12 t/axle. The remaining counterweight needed to reach full capacity fits on one standard trailer

• Superstructure
  • Bi-fold swingaway, 8,7/15 m with hydraulic offset and luffing under load (0°-40°), controlled from the crane cab.
  • Bi-fold swingaway, 8,7/15 m (manual offset 0°, 20°, 40°).
  • Lattice extension, 21 m - includes 6m fixed non-offsettable section plus 8,7/15 m swingaway (see above).
  • Auxiliary hoist.
• Carrier
  • Drive/steer: 8 x 8 x 8
  • 8 tyres, size 445/95 R25 (16.00 R25) - Vehicle width 2,75 m.
  • 8 tyres, size 525/80 R25 (20.5 R25) - Vehicle width 2,88 m.
  • Folding bunk bed in carrier cab.
  • Secondary water retarder.
  • Reverse camera system.
