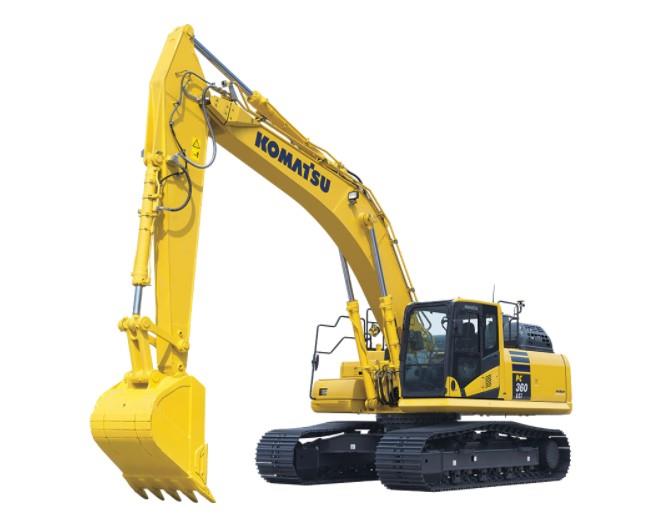

Komatsu PC360LCi-11

Komatsu PC360LCi-11

Request A Quote
View Brochure

Komatsu’s Comparison Tools

Main Technical Specifications
MAKE Komatsu
MODEL PC360LCi-11

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

New Komatsu PC360LCi-11 Excavator for Sale

Nimble, yet highly productive, the PC360LCi-11 is easily the most anticipated intelligent machine control machine to launch from Komatsu in recent memory. From trenching on a utility worksite to mass excavating on a highway project, the PC360LCi-11 is flexible and versatile enough to be at home on almost any jobsite.

Intelligent Machine Control features a unique sensor package, including stroke sensing hydraulic cylinders, an IMU sensor, and GNSS antennas. The machine utilizes 3D design data loaded into the machine’s monitor to accurately display machine position relative to target grade. When the bucket reaches the target surface, automation kicks in to limit over excavation.



FEATURES

  • INTELLIGENT MACHINE CONTROL: Intelligent Machine Control excavator with semi-automatic control allows the operator to improve work efficiency as compared to conventional aftermarket machine guidance (indicate only) or manual operation. Rough digging to finish grading, intelligent Machine Control minimizes over-excavation to make every pass count.
  • AUTO GRADE ASSIST: With the auto grade assist function, the operator moves the arm, the boom adjusts the bucket height automatically, tracing the target surface and minimizing digging too deep. This allows the operator to perform rough digging without worrying about the design surface, and to perform fine digging by operating the arm lever only. The working range is expanded by holding the lever to move the boom downward.
  • AUTO STOP CONTROL: During boom or bucket operation, the work equipment automatically stops when the bucket edge reaches the design surface, thus minimizing damage to the design surface.
  • MINIMUM DISTANCE CONTROL: The intelligent Machine Control excavator controls the bucket by automatically selecting the point on the bucket closest to the target surface. Should the machine not be facing a sloped surface at a right angle, it will still follow the target surface and minimize digging below it.
  • KOMATSU INTELLIGENT MACHINE CONTROL COMPONENTS: Standard factory installed intelligent Machine Control system for 3D GNSS machine guidance and semi-automatic control. Sensor package includes stroke sensing hydraulic cylinders, inertial measurement units, and GNSS antennas.
  • STROKE SENSING HYDRAULIC CYLINDER: Sensor package with stroke sensing hydraulic cylinders provides real time position, immediately displayed to the operator. This is in contrast to conventional aftermarket machine guidance (indicate only) systems with tilt sensors that require time to stabilize.
  • CONTROL BOX: The monitor of the Komatsu intelligent Machine Control (control box) uses a large 12.1" (30.7 cm) touch screen for visibility and ease of use. The screen layout is customizable to display information in an easily understood fashion with a variety of views including 3D, plan, and section.
  • FACING ANGLE COMPASS: The orientation and color of the facing angle compass’s arrow shows the operator the facing angle of the bucket edge relative to the target surface. This allows the bucket edge to be accurately positioned square with the target surface, which is useful when finishing slopes.

Body
Frame Center frame: X-frame
Track frame: Box-section
Steering Two levers with pedals
Dimensions
Length 36’7”-36’8”
Width 11'3"
Height 10'4"-10'11"
Weight 78,484-79,807 lbs.
Ground Clearance 3’11” (Counterweight)
1’8” (Minimum)
Fuel Tank Capacity 159.8 U.S. gal
Engine
Engine Make Komatsu
Engine Model SAA6D114E-6*
Engine Type Water-cooled, 4-cycle, direct injection
Cylinders 6
Horsepower 271 HP
Net Horsepower 257 HP
Bore x Stroke 4.49" x 5.69"
Governor All-speed control, electronic
Rated RPM 1950
Aspiration Komatsu Variable Geometry Turbocharger with air-to-air aftercooler and EGR
Piston Displacement 540 in³
Drivetrain
Brakes Service brake-Hydraulic lock
Parking brake-Mechanical disc brake
Gradeability 70%, 35°
Track Length 16’3”
13’3” (on ground)
Drawbar Pull 65,191 lb
Track Type Sealed
Track Rollers 8 (each side)
Ground Pressure 6.9 psi
Carrier Rollers 2 (each side)
Track Adjuster Hydraulic
Hydraulic
Pump Type: Variable displacement piston type
Boom, arm, bucket, swing, and travel circuits
Std Pump Flow 141 U.S. gal/min
Control Valve Self-reducing valve
Hydraulic Cylinders Number of cylinders-bore x stroke x rod diameter
Cylinder Boom: 2-5.5" x 58.3" x 3.9"
Cylinder Arm: 1-6.3" x 71.9" x 4.3"
Number of Buckets: bore x stroke x rod diameter
For 10’5” & 13’2” Arms: 1-5.5" x 50.6" x 3.9"
For 8’4” Arm: 1-5.9" x 50.6" x 4.3"
Relief Valve Setting Implement circuits: 5,400 psi
Travel circuit: 5,400 psi
Swing circuit: 4,050 psi
Pilot circuit: 470 psi
Hydraulic Motors Travel: 2 x axial piston motor with parking brake
Swing: 1 x axial piston motor with swing holding brake
Operational
Dig Depth 23’11”-26’7”
Dig Height 33’6”-34’7”
Arm Length 10’5"
Dump Height 23’4”-24’7”
Bucket Capacity 0.89–2.56 yd³
Travel Speed - Forward High-3.4 mph
Mid-2.8 mph
Low-2.0 mph
Boom Length 21'3"
Tail Swing Radius 11’4”
Swing Torque 82,313 ft. lbs.
Swing Speed 9.5 rpm
Shoes 48 (each side)
Track Gauge 8’6”
Swing Reduction Planetary gear
Swing Circle Lubrication Grease-bathed
Swing Lock Mechanical disc brake
Drive Method Hydrostatic motor
Hydraulic Type HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valves, 6 selectable working modes
Digging Reach 36’5”-39’1”
35’10”-38’6” (at ground level)

  • 3D GNSS intelligent Machine Control
  • 3 speed travel with auto shift
  • Alternator, 90 Ampere, 24V
  • AM/FM radio
  • Arm holding valve
  • Automatic engine warm-up system
  • Automatic climate control/air conditioner/heater/defroster
  • Auto idle
  • Auto idle shut down, programmable
  • Auxiliary input (3.5mm jack)
  • Batteries, large capacity (2 x 12V)
  • Battery master disconnect switch
  • Boom holding valves
  • Carrier rollers, (2 each side)
  • Converter, (2) x 12V
  • Counterweight, 6920 kg 15,255 lb
  • Dry type air cleaner, double element
  • Electric horn
  • Engine, Komatsu SAA6D114E-6
  • Engine coolant to -25°C -13°F
  • EMMS monitoring system
  • Engine overheat prevention system
  • Extended work equipment grease interval
  • Fan guard structure
  • Fuel priming pump
  • Fuel system pre-filter 10 micron
  • Grease sealed track chain
  • High back air suspension seat, with heat
  • Hydraulic cooling fan (reversible)
  • Hydraulic track adjusters
  • KOMTRAX® Level 5.0
  • Large LCD color monitor, high resolution
  • Lock lever
  • Mirrors, (LH and RH)
  • Operator Protective Top Guard (OPG), Level 1
  • Operator identification system
  • Pattern change valve (ISO to BH control)
  • Power maximizing system
  • PPC hydraulic control system
  • Pump/engine room partition cover
  • Radiator and oil cooler dustproof net
  • Rear reflectors
  • Rearview monitoring system (1 camera)
  • Revolving frame deck guard
  • Revolving frame undercovers
  • ROPS cab (ISO12117-2)
  • Seat belt indicator
  • Seat belt, retractable, 76mm 3"
  • Secondary engine shutoff switch
  • Service valve
  • Skylight
  • Slip resistant foot plates
  • Starter motor, 11.0kW/24V x 1
  • Suction fan
  • Thermal and fan guards
  • Track frame swivel guard
  • Track roller guards, center section
  • Track rollers, 8 (each side)
  • Track shoes, triple grouser, 850mm 33.5"
  • Travel alarm
  • Two boom mode settings
  • Working lights, 2 (boom and RH front)
  • Working mode selection system

Arms:

  • 3185 mm 10'5" arm assembly
  • 4020 mm 13'2" arm assembly

Booms:

  • 6500 mm 21'3" HD boom assembly

Other:

  • Revolving frame undercovers, heavy duty
  • Track roller guards, full length
  • Track shoes, triple grouser, 850 mm 33.5"3
